Ryder eBike Drive System

$64.95 USD
$148.95 USD $64.95 USD
SAVE 56% SOLD OUT

CLICK ON, TAKE OFF

Convert your bicycle into a versatile high-performance eBike. Our clip-on electric motor and light eBike drive system offers you the freedom to switch between electric assistance and regular cycling whenever you like. Pre-order this new generation conversion kit and revolutionize your cycling with our powerful click-on, click-off eBike drive system.

1X Ryder drive unit
1X DiskDrive® brake rotor
1X DynamicClimb® pedal sensor

How to Use

In order to install a Ryder you need to replace your bike’s disc brake rotor with our DiskDrive rotor. Our manual (provided with your Ryder) will contain all relevant information. Closer to the delivery time we will provide you with video tutorials and a digital version of the user manual. If you are unsure whether you can install Ryder, feel free to contact us.

Why Choose Ryder?

Ryder's new generation conversion kit gives you the flexibility to create your own high quality eBike while maintaining the ability to ride your bicycle normally whenever you choose. In terms of weight, power and overall experience, a regular bike powered by a Ryder eBike drive system compares favourably to more expensive eBikes. Ryder's click-on, click off drive system is produced with high quality components and a strong attention to detail.

Specifications

Motor Rating - 250W

Weight - Approx 4.5kg + approx. 600g added weight for DiskDrive® disc rotor compared to regular disc rotor

Torque - 45Nm

Battery Wh - 240 Wh

Charge time empty to full - 2.5hrs

Range - Eco mode up to 50km; Turbo mode up to 30km

Drive Type - DiskDrive®

Top Speed - 25km/h

Range on 30 min charge - 10-15km

Shipping & Delivery

We provide quick and dependable shipping on all orders. Delivery typically takes 7–14 days, depending on your location.

If you have any questions or concerns about your order, our customer support team is here to help so feel free to reach out anytime.

Money Back Guarantee

If you're not 100% satisfied within the first 30 days, just send it back to us and we'll give you a full refund.

View full details

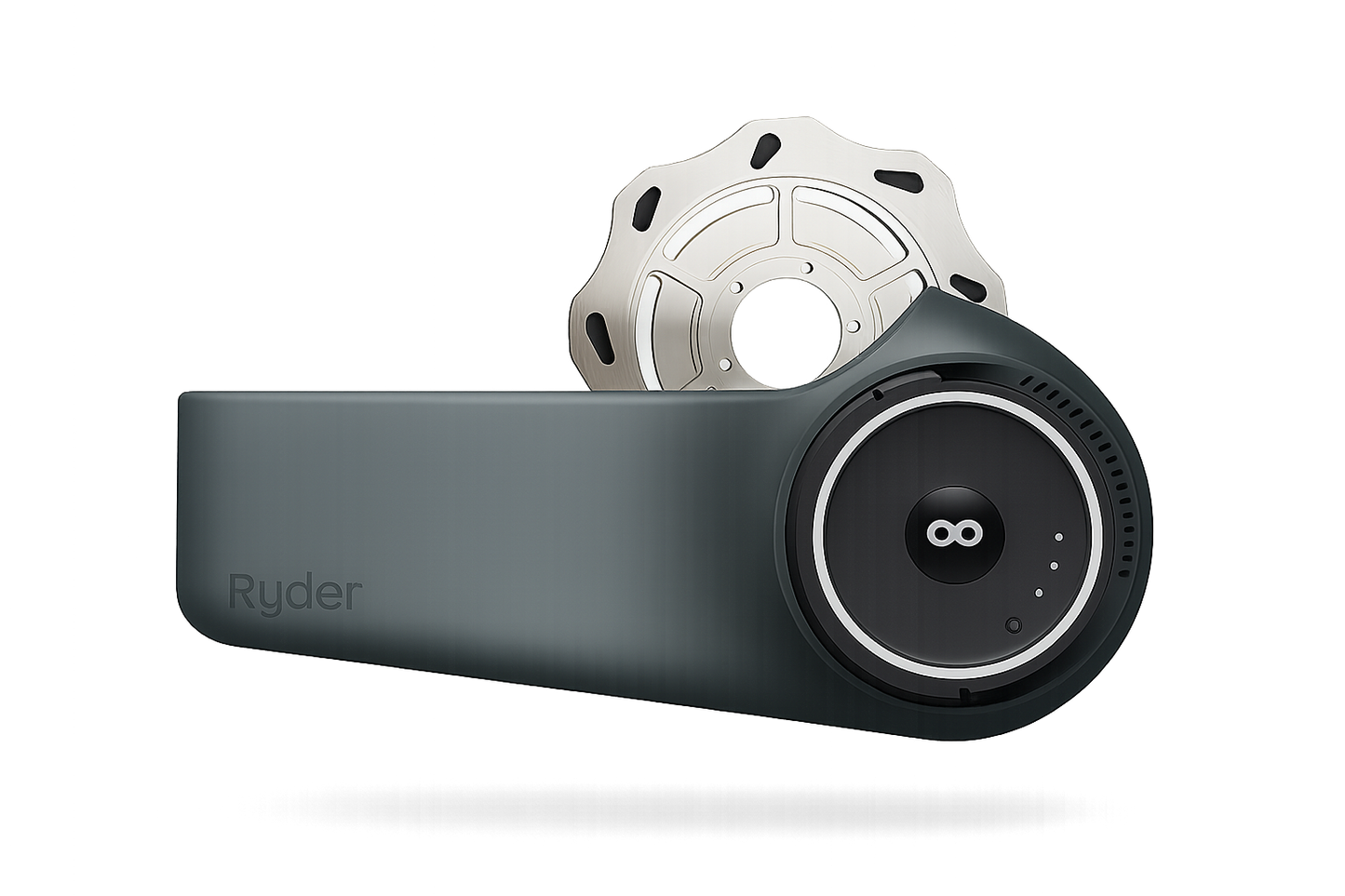

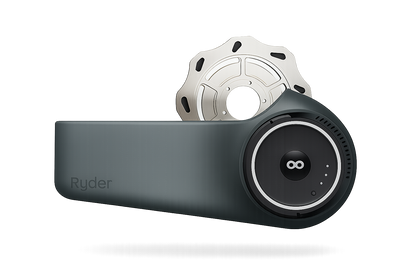

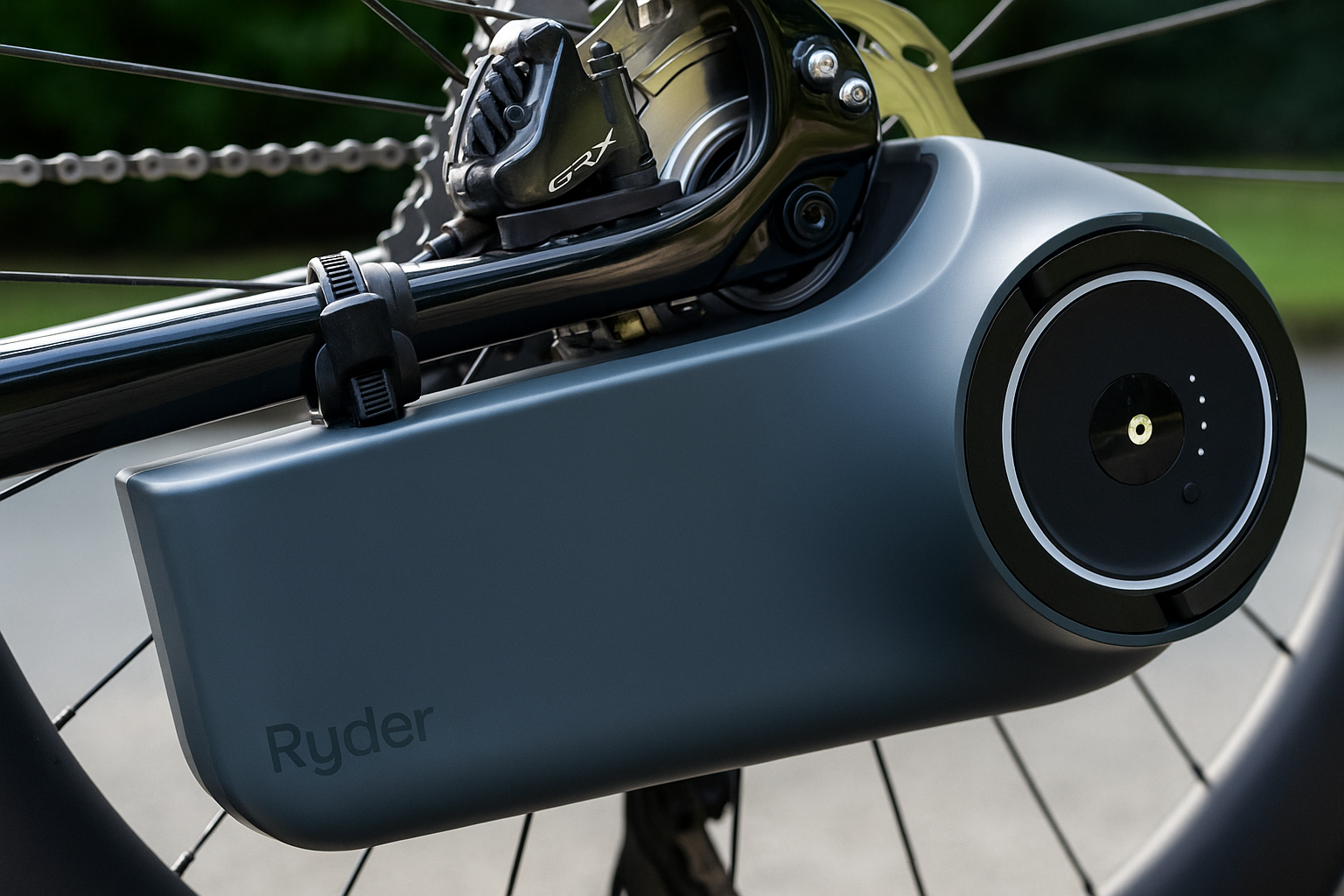

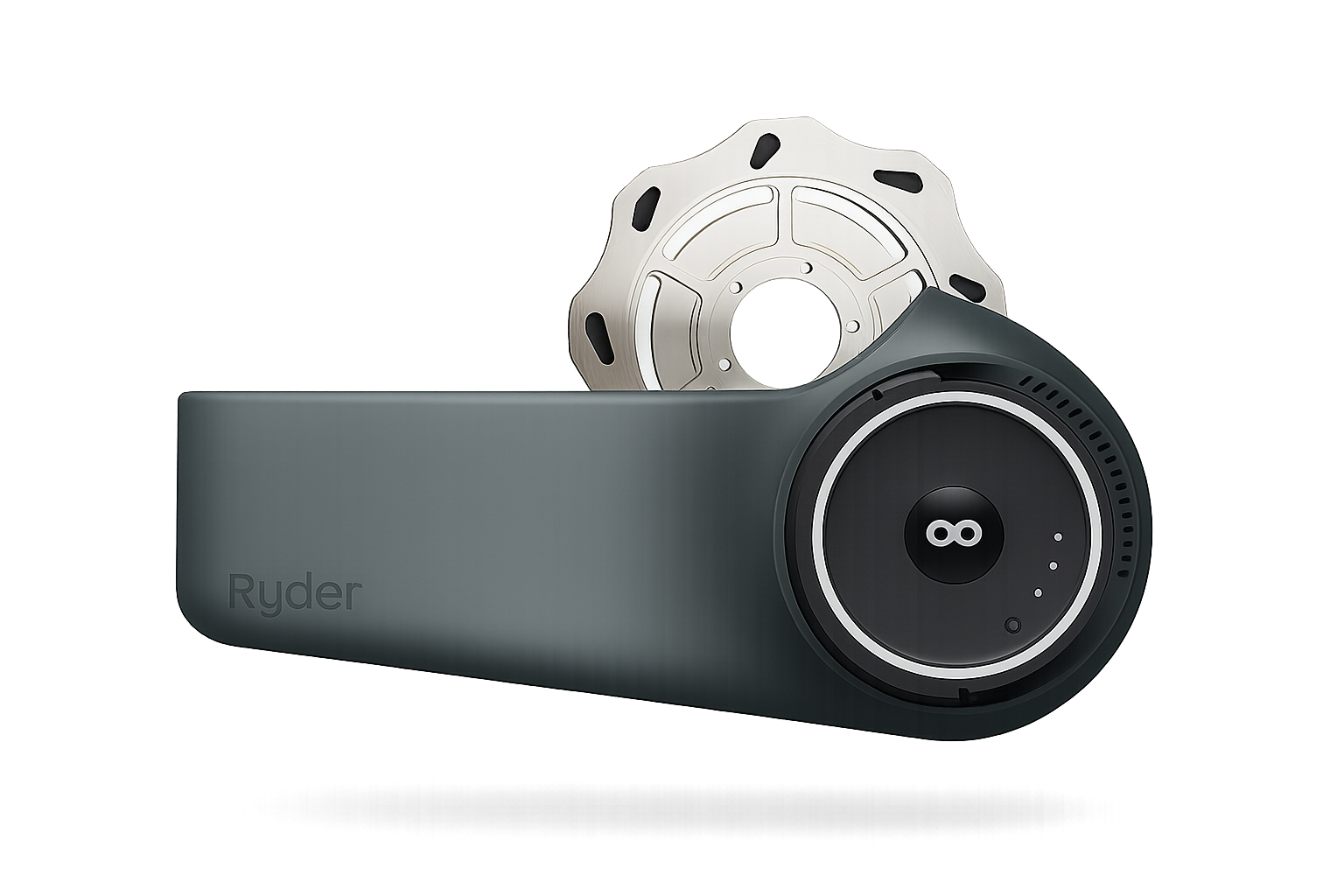

RYDER® DRIVE UNIT

A high torque brushless e-motor is combined with a state-of-the-art Li-ion battery pack in a compact and portable package.

  • Powerfull
  • Light
  • Click on - click off

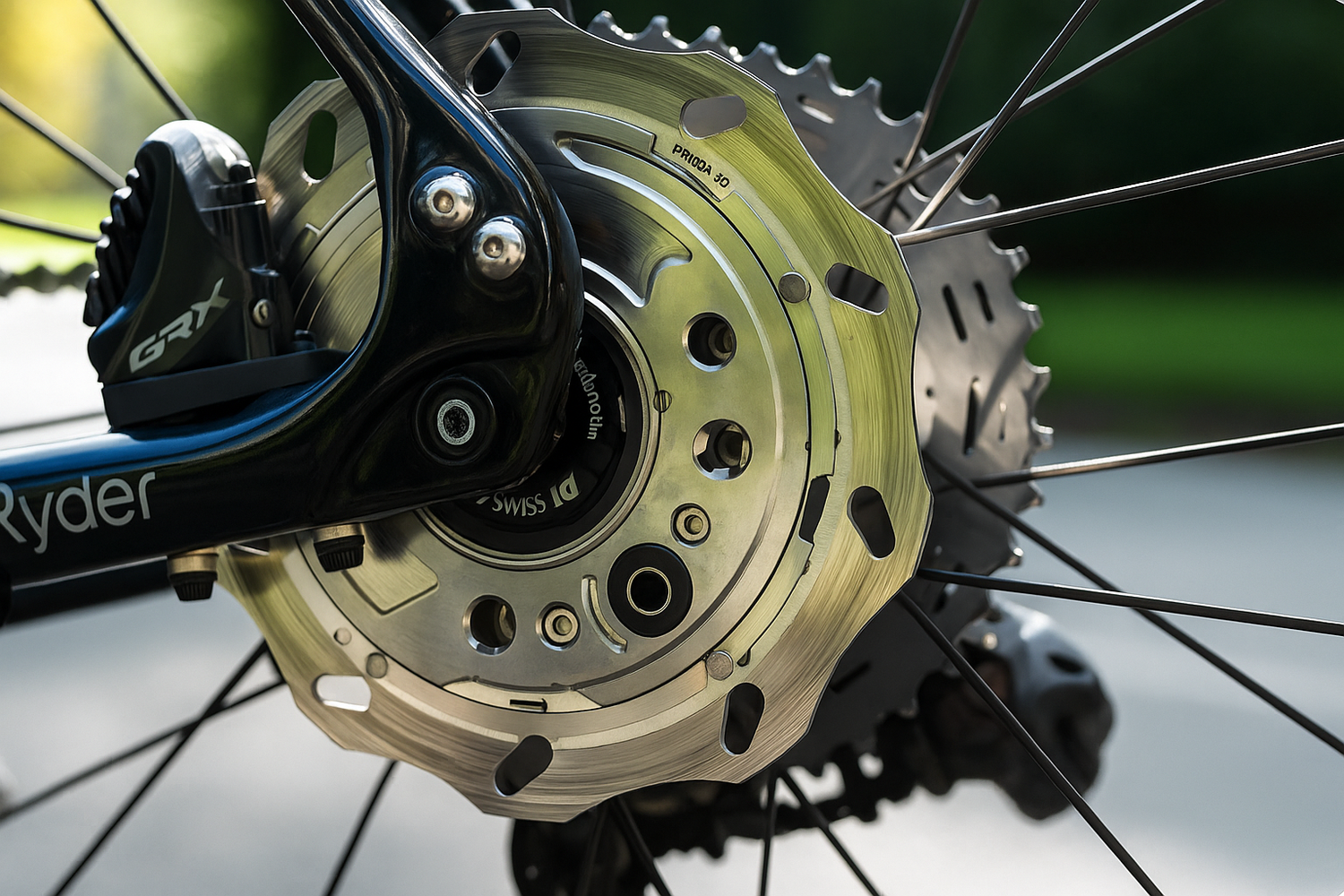

DISKDRIVE® BRAKE ROTOR

A maintenance-free, sealed gearbox built into the space behind a disc brake rotor. Simply replace your existing brake rotor with the DiskDrive® rotor and your bicycle is ready to become a powerful, high-performance eBike whenever you like.

  • Energy efficient
  • Safe
  • 5-Minute one-time installation

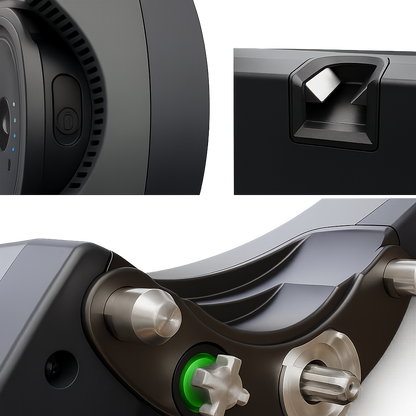

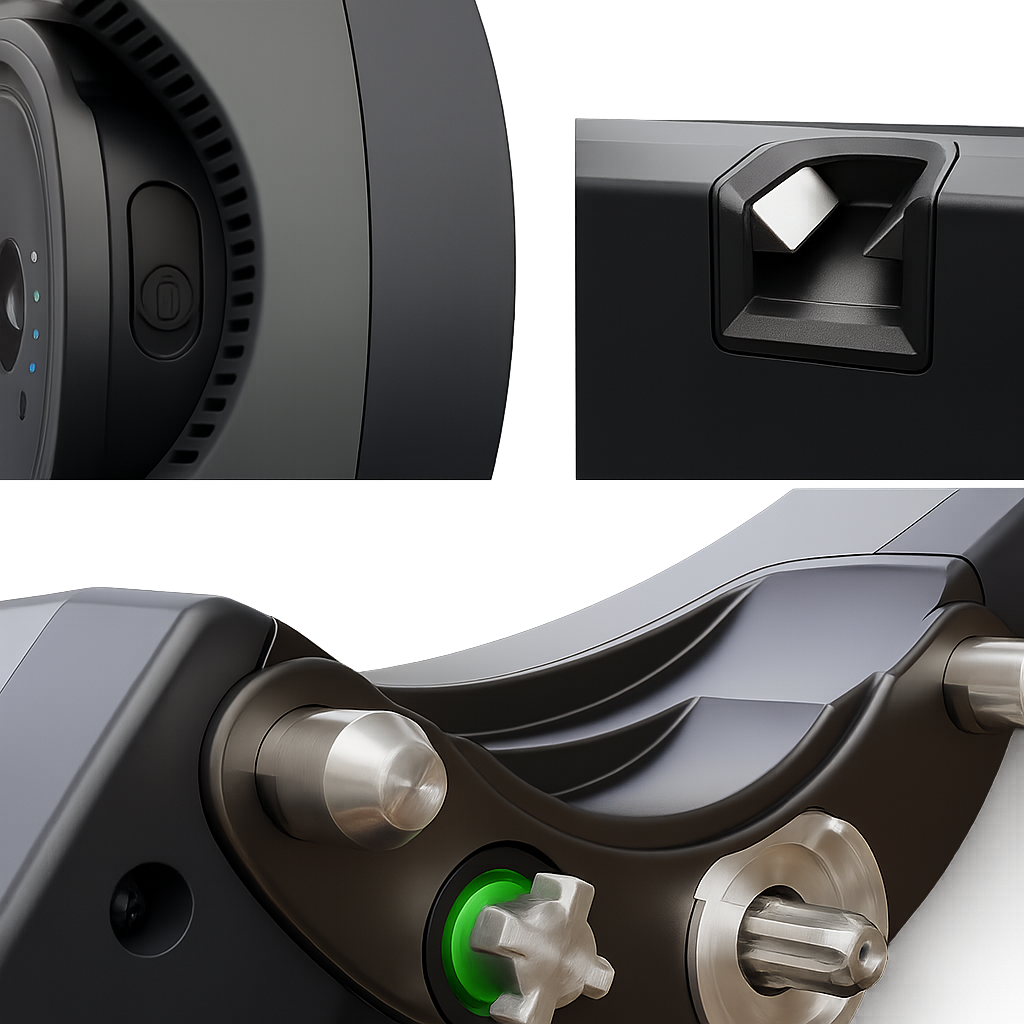

ENGINEERED FOR ENDURANCE

From design to performance, Ryder is built to offer a consistently smooth and reliable experience for years ahead.

  • Robust
  • Waterproof
  • Detachable in a click

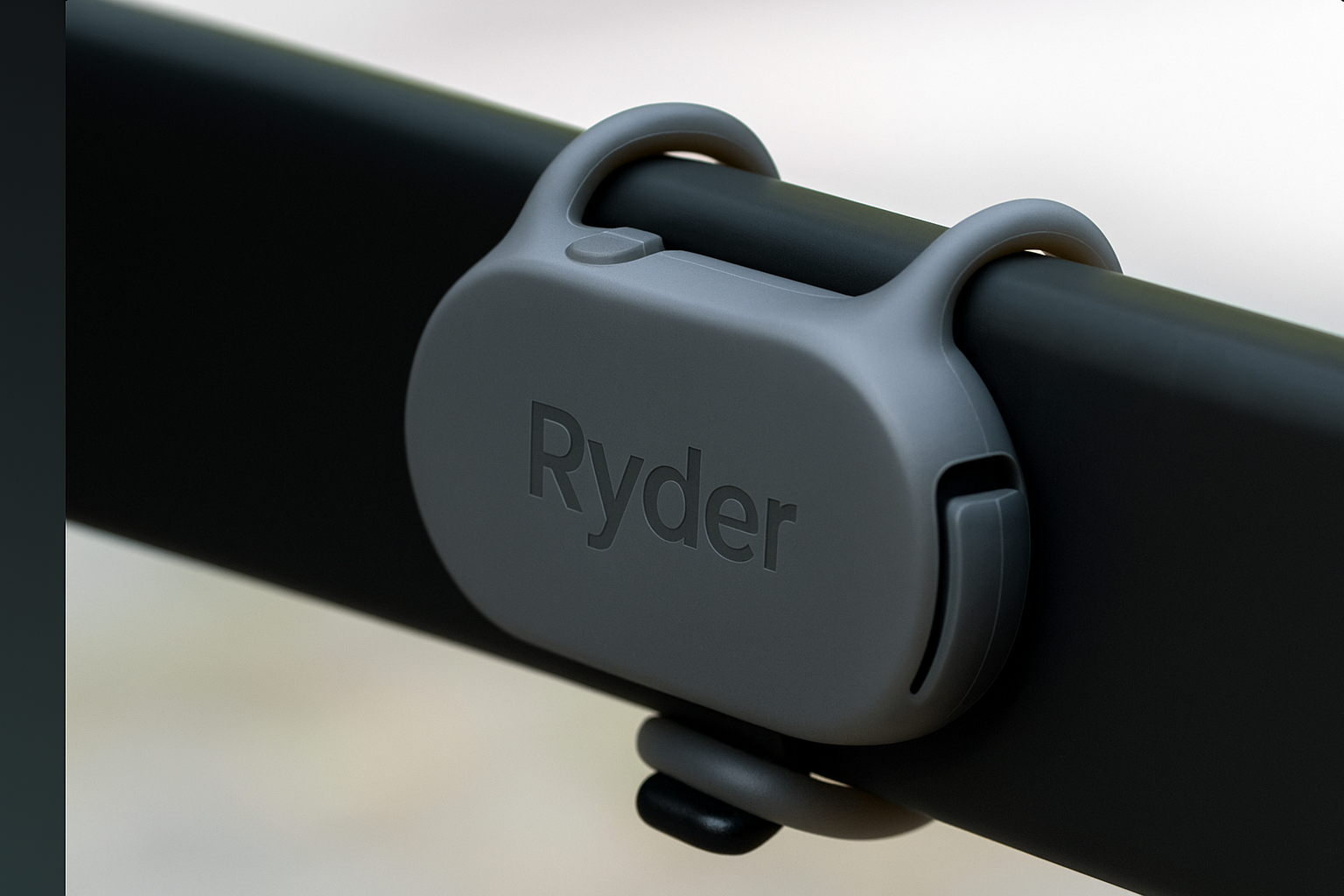

DYNAMICCLIMB® PEDAL SENSOR

Ryder is a pedal assist eBike drive system, with wireless Bluetooth connectivity between the DynamicClimb® pedal sensor and your Ryder Drive Unit.

Ryder adapts to your cycling style, delivering near-instantaneous power while dynamically responding to changing terrain with its built-in incline sensor.

Got Questions? We Have Answers!

Does the Ryder unit fit any bike?

Ryder is designed to fit disc brake bikes and has been tested on a wide selection of bicycle frames. The current Ryder unit fits bikes that can accept a 160mm disc rotor. If your bike has a 140mm rotor and you would like to use the Ryder eBike drive unit, a bike shop should be able to adapt your bicycle to Ryder's 160mm rotor using an off-the-shelf 140mm to 160mm calliper adaptor – which can be purchased online or in most bike shops.

Ryder's eBike drive system is designed to work with 26-29” wheels.

What if the Ryder doesn't fit my bike?

If your Ryder doesn’t fit, you can contact us for technical advice. If after receiving advice you still cannot fit it on your bike and your Ryder is unused, you can return it for a full refund within 30 days of receiving your product. We strongly recommend checking your bike’s compatibility before ordering. If you ordered Ryder and realized that your bike does not fit before delivery, you can simply contact us to cancel your order and receive a full refund. Full details about our returns policy can be found in our Terms & Conditions.

How do I charge the unit? What's the range?

Ryder charges fully in 2.5 hours with a range of up to 50km in Eco mode. 30 minutes of charging will give 10 – 15 km of range.

How often should I charge the pedal sensor?

The pedal sensor battery lasts approximately 17–18 hours of riding time. When the battery is fully empty, it takes about one hour to fully recharge.

When you first receive your pedal sensor, make sure to connect it to a charger before use to wake it up and activate the battery.

Can the bike be ridden like a normal bicycle once the eBike drive system is connected?

Ryder can be unclipped from your bike in seconds to ride the bike again normally. In addition, you can also ride the bike regularly with Ryder's eBike drive system still attached and turned off or in pause mode. We designed the system to have a built-in free wheel so there is minimal drag from Ryder allowing you to go on a normal ride and only activate the eBike Drive System during the times you require extra help on your cycle.

How do you change modes?

All controls are on the User Interface on your Ryder, where you can change between Turbo, Cruise, and Eco modes. You can even backpedal three times to send Ryder to Pause mode. In Pause mode Ryder is turned on but does not provide assistance, allowing you to enjoy riding your bike as you would normally. When you feel you need some assistance, simply backpedal three times again and Ryder will wake up and return to providing assistance. It is not possible to change support modes while riding at the moment, however the adaptive power delivery of Ryder that takes into account the road conditions including your incline meaning that whatever mode you enjoy riding, you do not need to go back and forth between modes to adapt to changing road conditions as you might with other eBikes. We have future plans for an add-on control unit and an app for changing control on your phone, so stay tuned.
